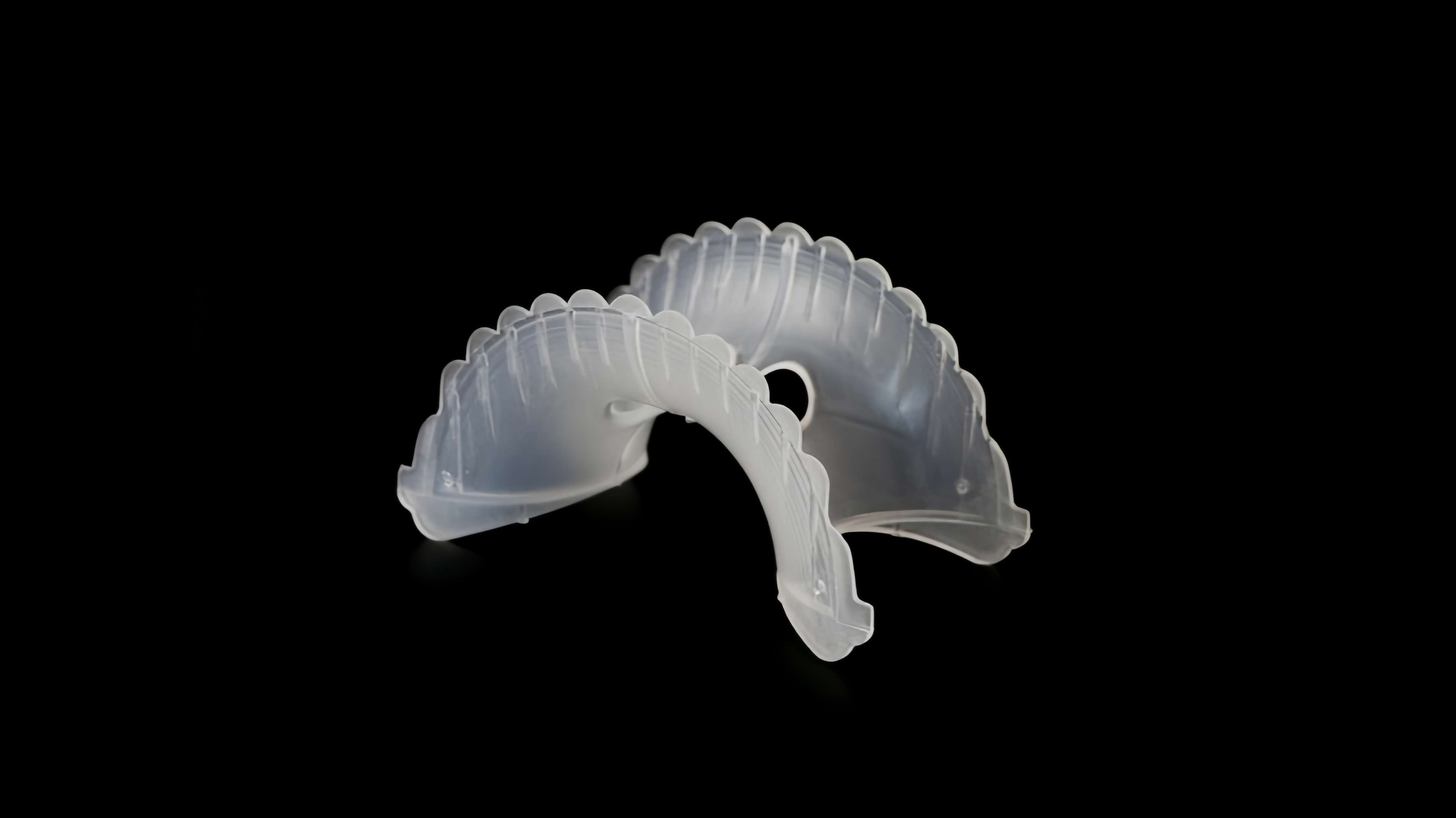

Figure 1: High-precision molding ensures structural integrity and prevents crushing.

PP Intalox Saddle is the workhorse of corrosive-gas scrubbers and absorption towers. It’s cheap, light, and looks fine on paper. But many procurement teams treat it as a commodity—picking the lowest price per cubic meter—only to face channeling, flooding, or deformed packing six months later.

This guide provides a process-led checklist to help you specify the right geometry, resin quality, and size, ensuring your tower runs efficiently for years, not months.

Typical Specification Reference (PP)

*Data referenced from FXSINO Lab Test Report AT-2024-PP01. Actual performance depends on tower internals.

Trap 1: Virgin vs. Regrind (The #1 Cause of Failure)

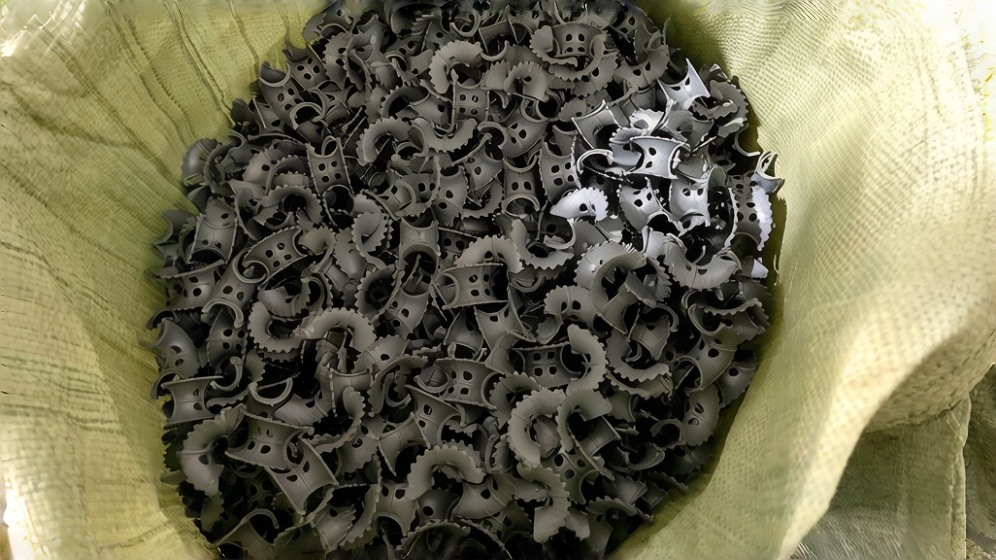

Regrind (recycled) PP looks identical to virgin resin on day one. But under UV exposure, thermal cycling, or mechanical load, it embrittles rapidly. This leads to micro-cracks that break off, travel downstream, and destroy your pumps and nozzles.

FXSINO Recommendation: Specify "100% Virgin PP with UV Stabilizer" in your PO. The 5% savings is never worth the 100% cost of a shutdown.

Trap 2: Temperature & Oxidizer Limits

PP softens around 80-100°C. If your tower experiences "temperature excursions" (spikes), the saddles can flatten at contact points, drastically reducing void space and causing flooding. Additionally, strong oxidizers (like Sodium Hypochlorite or Nitric Acid) accelerate PP degradation.

Trap 3: Ignoring the Distributor

No packing can fix a bad liquid distributor. If the liquid isn't evenly spread, the bed will channel. Always verify your distributor orifice size and pattern matches the packing size and liquid load.

Trap 4: Sizing Based Only on Price

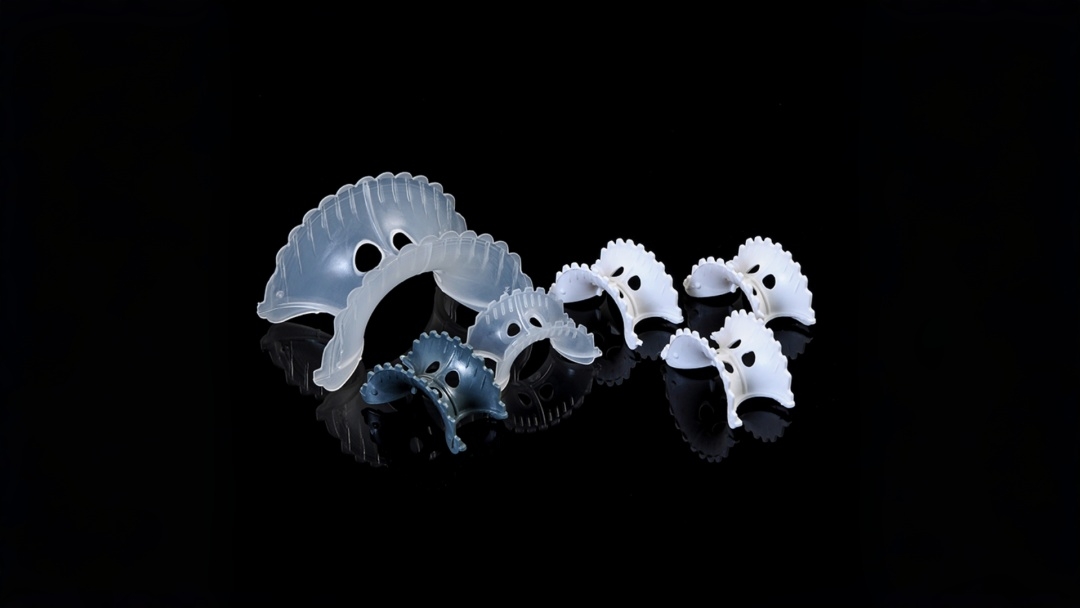

25mm saddles have more surface area but higher pressure drop and foul faster. 50mm saddles handle more solids but need higher liquid irrigation to stay wetted. Choose based on L/G ratio, not just cost per cubic meter.

1. Media Passport: List all components (Cl⁻, F⁻, oxidizers), pH, and max/min temperatures (including upset conditions).
2. Resin Integrity: Specify Virgin PP + UV stabilizer. Ban regrind.
3. Size Logic: Match 25/38/50mm to your tower ID and liquid load. Ask for a loading/flooding curve.

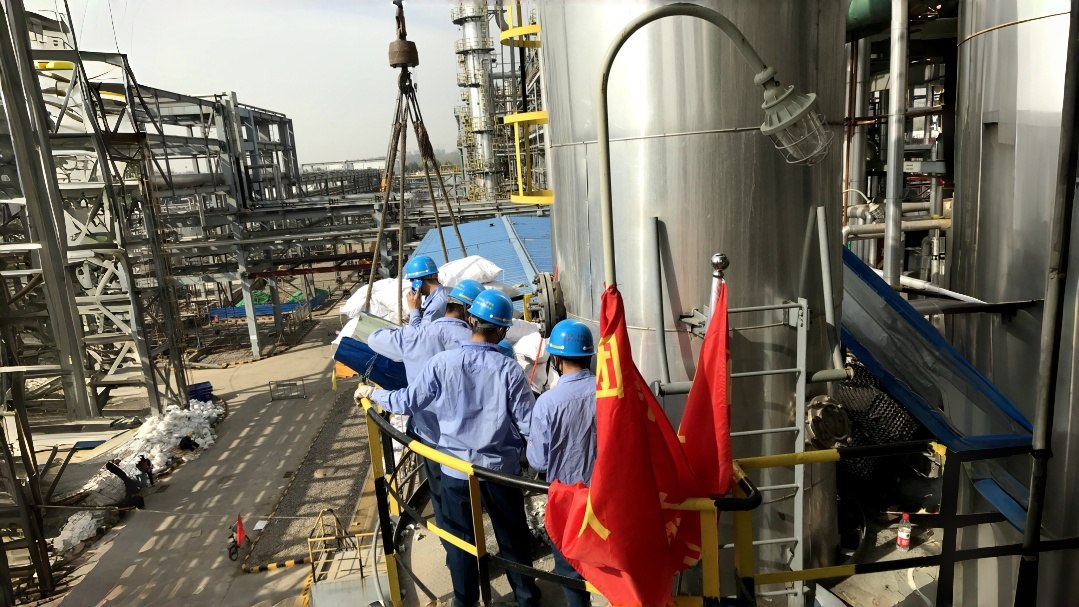

4. Installation QA: Who verifies bed levelness? Who checks the support grid?
5. TCO Focus: Evaluate freight, downtime risk, and cleaning frequency—not just $/m³.

Get Your Free PP Saddle Quote & Datasheet

If you are designing or upgrading a scrubber, send us your Media Passport (flow rates, temperatures, and chemical composition). FXSINO will verify the sizing, confirm virgin material specs, and provide a competitive quote within 24 hours.
