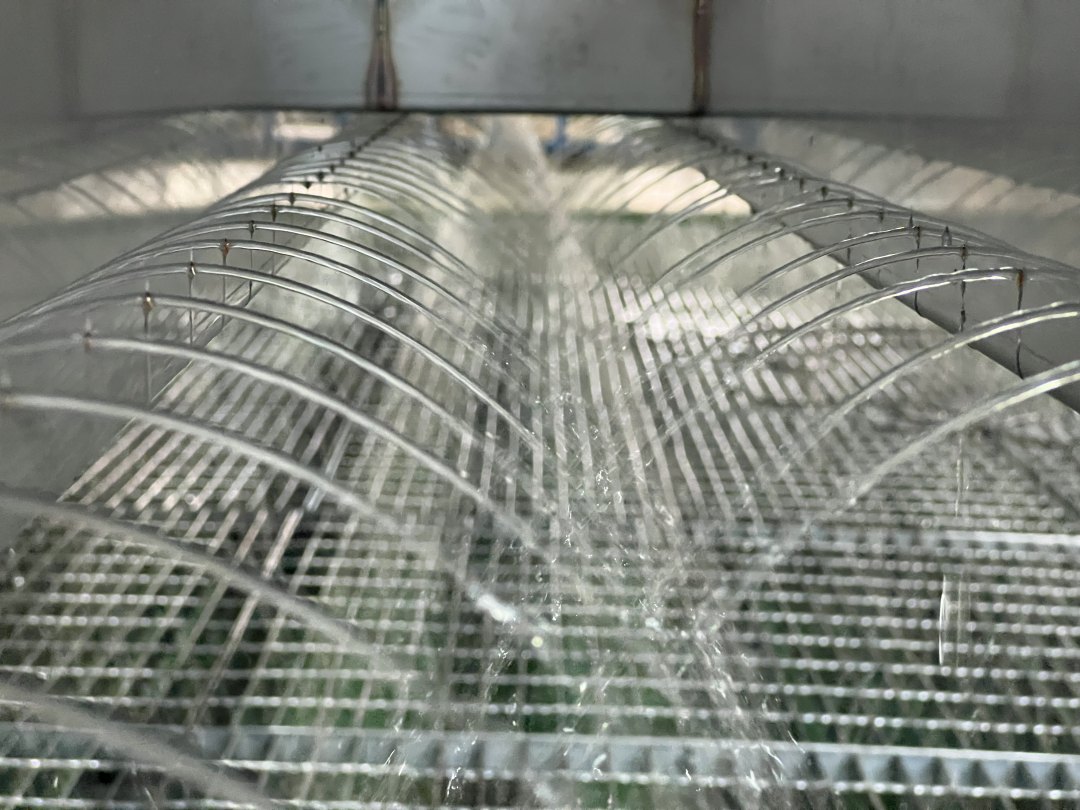

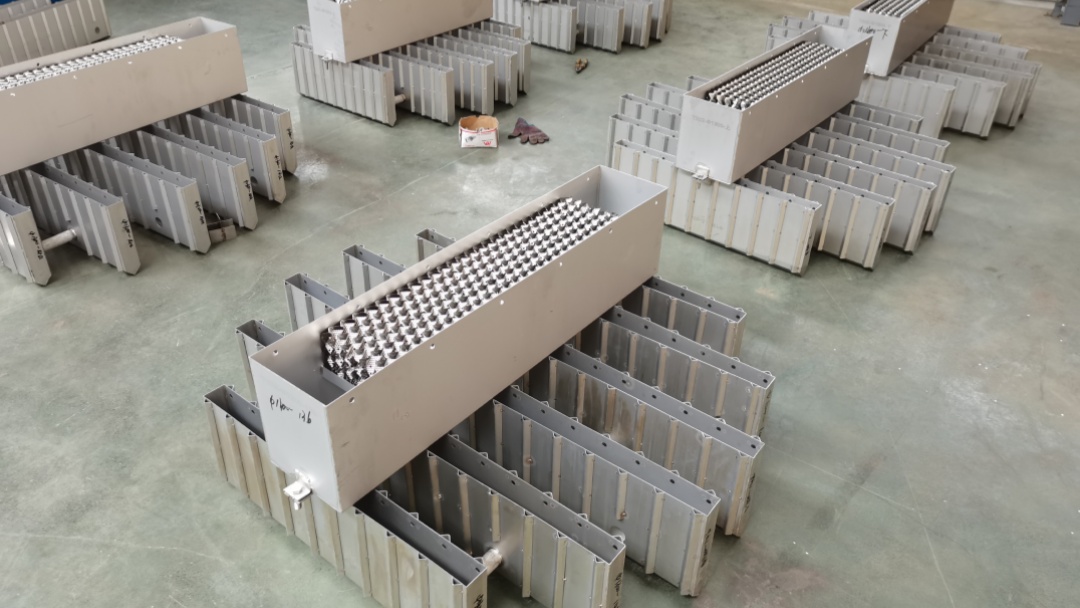

Figure 1: Dual-stage trough distributor ensuring uniform irrigation across the packing bed.

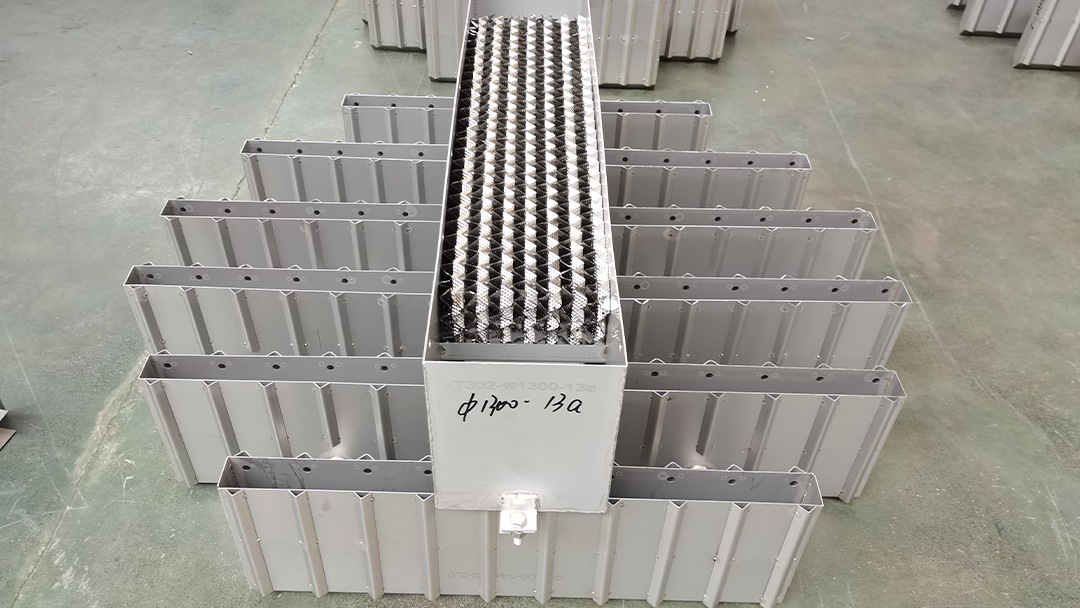

A packed column is only as good as its liquid distributor. Trough Distributors (also known as Pan Distributors) are the industry standard for large-diameter towers, providing superior flow capacity and resistance to fouling. Unlike spray nozzles, they rely on gravity and precise orifice placement to ensure uniform wetting and prevent maldistribution.

This guide covers the engineering essentials to ensure your tower operates at peak efficiency without premature flooding.

Distributor Type Comparison

Trap 1: The Leveling Catastrophe

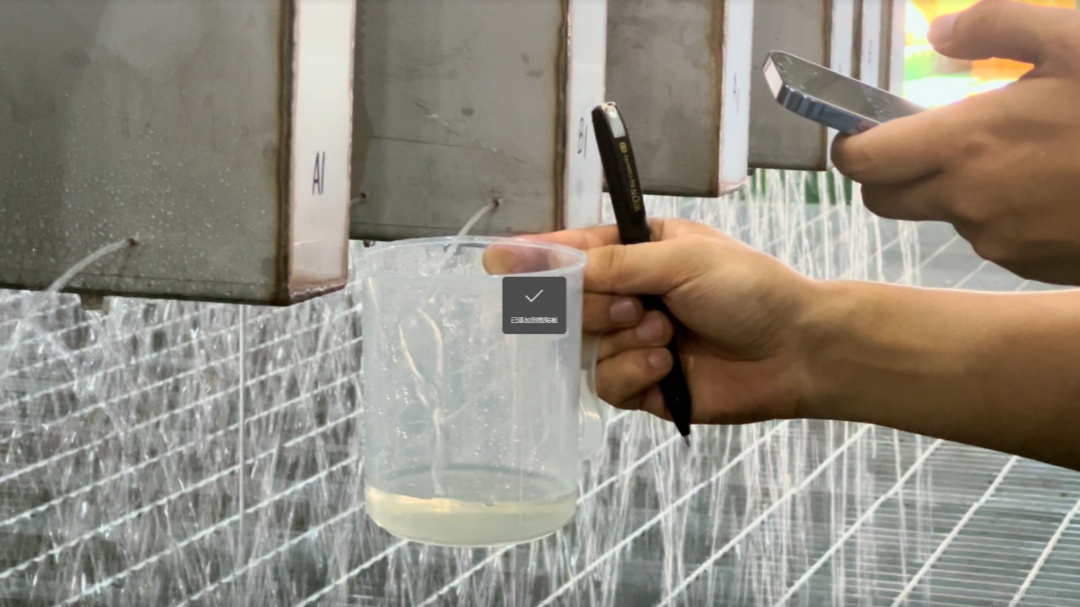

Even a 3mm deviation from level across a 2-meter trough can cause 20% flow maldistribution. Always install adjustable support legs and verify levelness with a digital spirit level before welding the unit in place.

Trap 2: Orifice Erosion & Wear

In slurry services or systems with high suspended solids, the small orifice holes wear out quickly, enlarging and changing the flow dynamics. Specify hardened alloys (e.g., 410S) or use larger orifice sizes to extend service life.

Trap 3: Vapor Pinching (Pressure Drop)

Trough distributors have lower free area than packing. If the vapor velocity under the troughs is too high, it creates a pressure drop spike, leading to flooding. Maintain a minimum vapor velocity of less than 60% of the packing's flood velocity.

1. Orifice Count: Calculate required drip points based on packing type (Structured needs more points than random).
2. Weir Height: For high turndown ratios, specify a taller weir to maintain a consistent head of liquid.
3. Material Match: Use the same alloy as the vessel to prevent galvanic corrosion (e.g., 316L vessel = 316L distributor).
4. Flange Connection: Ensure the inlet flange matches your piping. Consider a flanged connection for easy removal during maintenance.

Request Trough Distributor Quotation

FXSINO fabricates custom trough distributors for towers up to 8 meters in diameter. Send us your tower drawings or process data for a detailed engineering proposal.
